Description

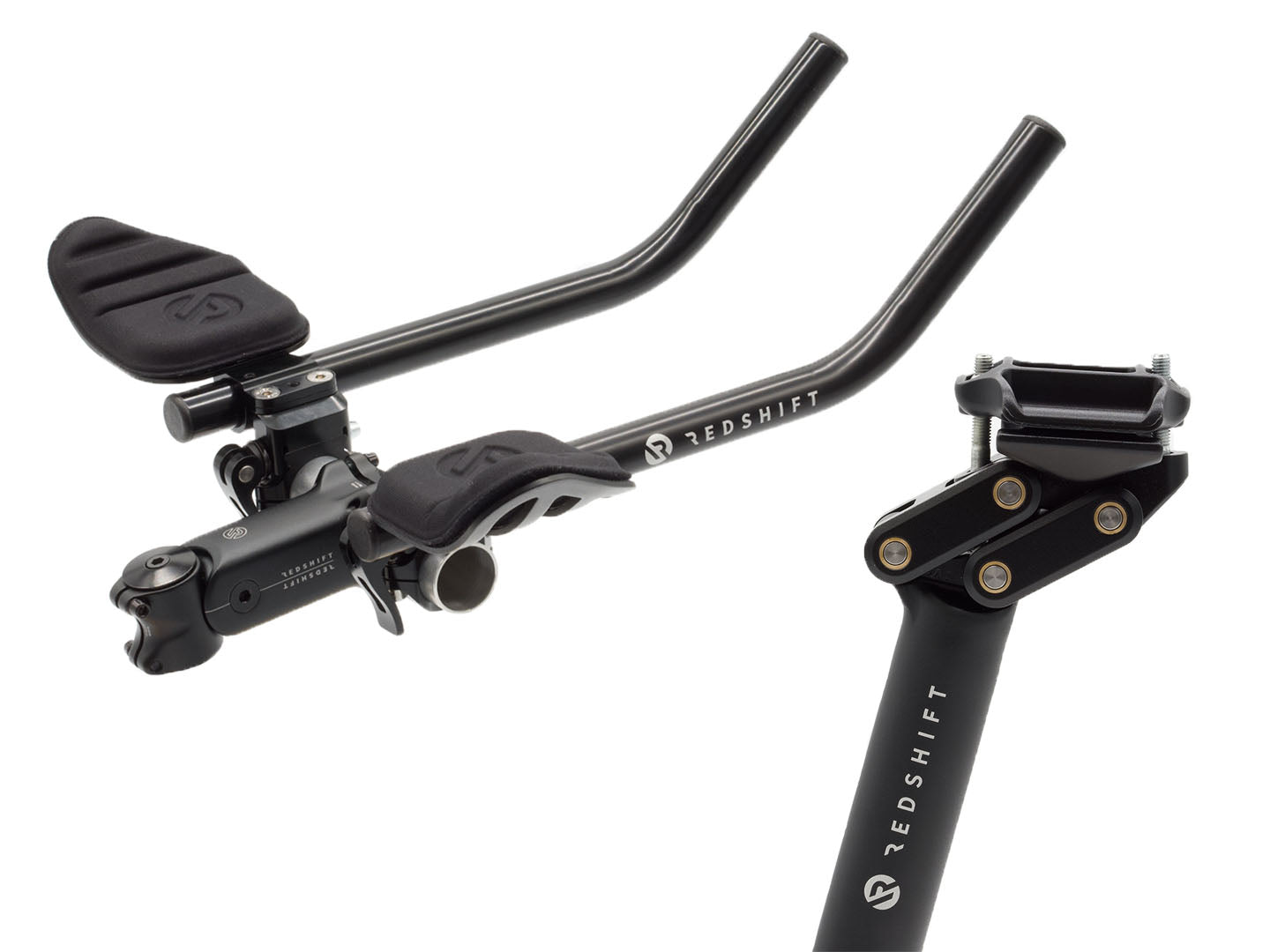

Redshift's Switch Aero System allows you to have a proper aero position on the road bike you already own. The system is comprised of Quick-Release Aerobars and a Dual-Position Seatpost.

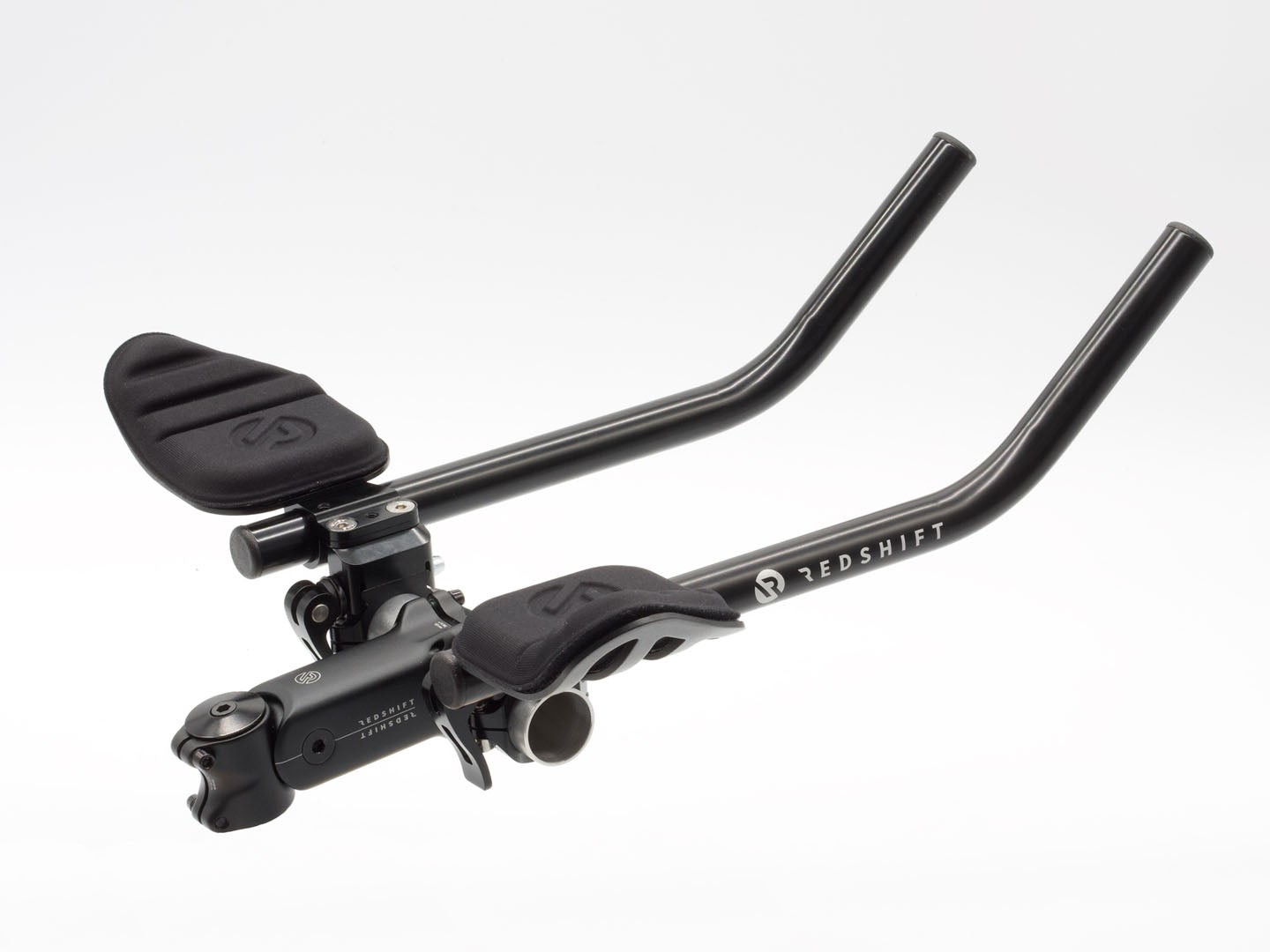

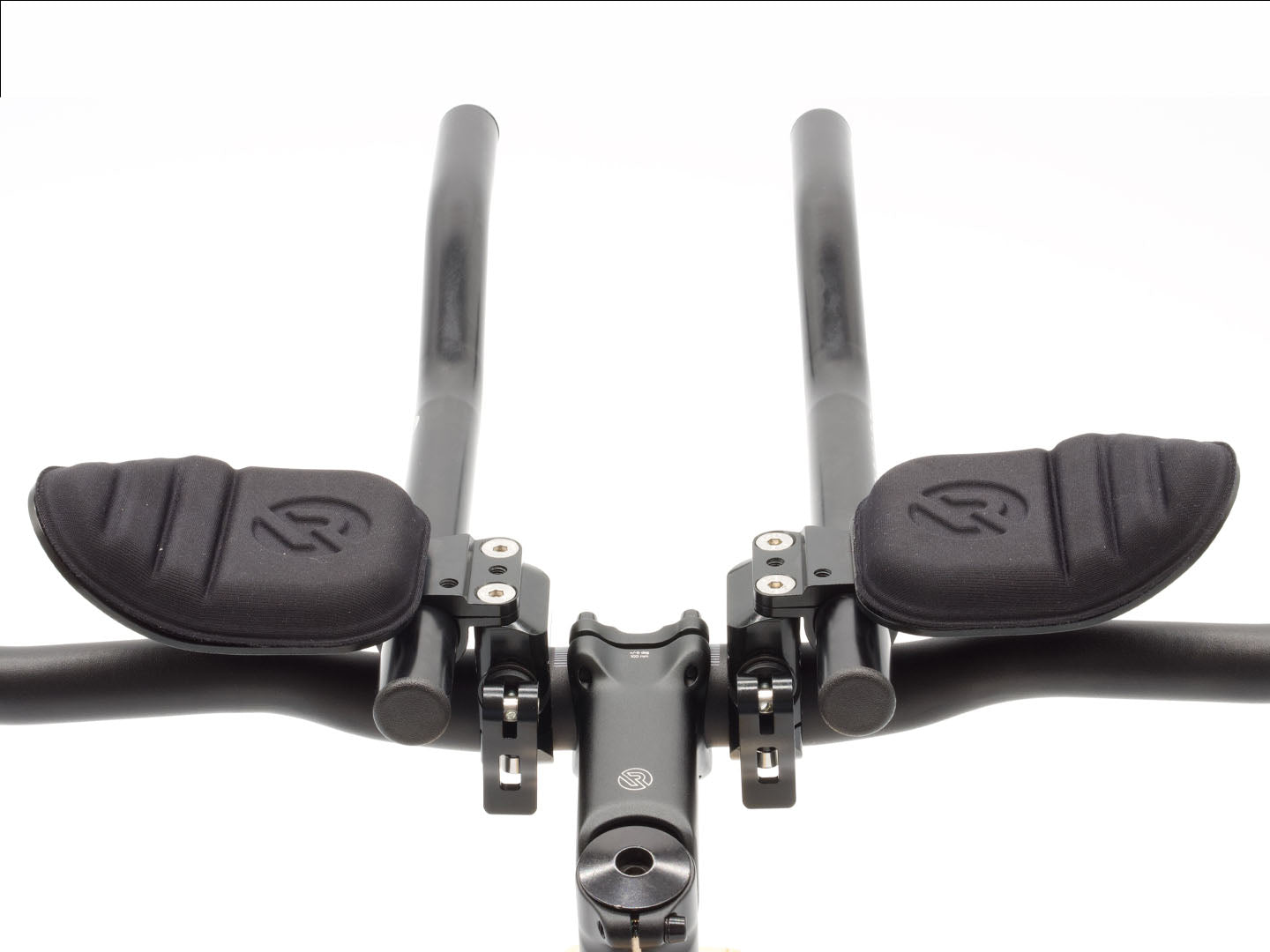

The Quick-Release Aerobars are different than any other aerobars on the market. The patented quick-release mechanism allows you to attach or remove the aerobars in a few seconds, without any tools. You can choose the best setup for every single ride.

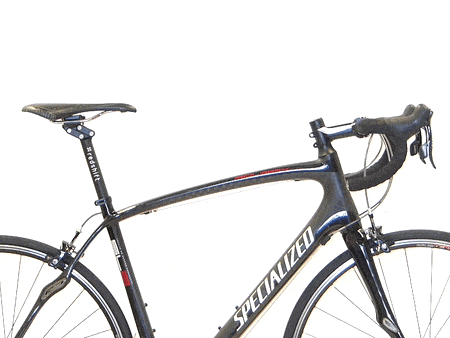

The patented Dual-Position Seatpost lets you ride a true aero position on a standard road bike, without sacrificing your normal road position. And you can switch between road and aero positions on-the-fly while riding so you can always choose the best riding position for every part of your ride.
Benefits:
• Transform your current bike - switch from road to aero position on the bike you already own
• No tools required - remove or attach the aerobars easily with the quick-release mechanism
• Ride with ease - no more time and energy wasted switching from road bike to aero bike
Quick-Release Aerobar Details:
• Extensions are available in L-Bend or S-Bend
• Massive adjustability lets you fine-tune your fit - extension length, armpad fore-aft, armpad width and height (Extension Riser Kit sold separately)
• Secondary safety release mechanism prevents accidental release
Dual-Position Seatpost Details:

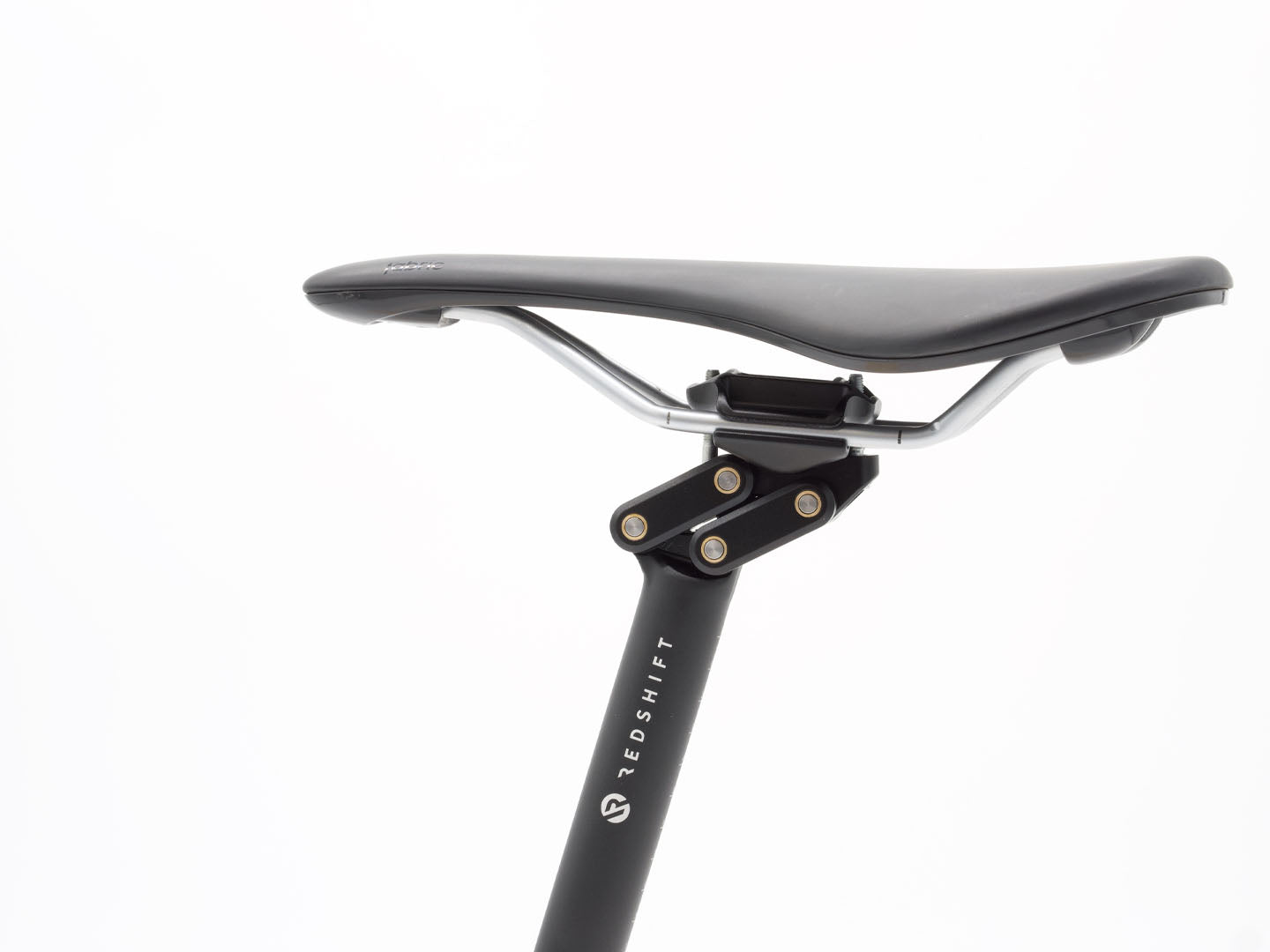

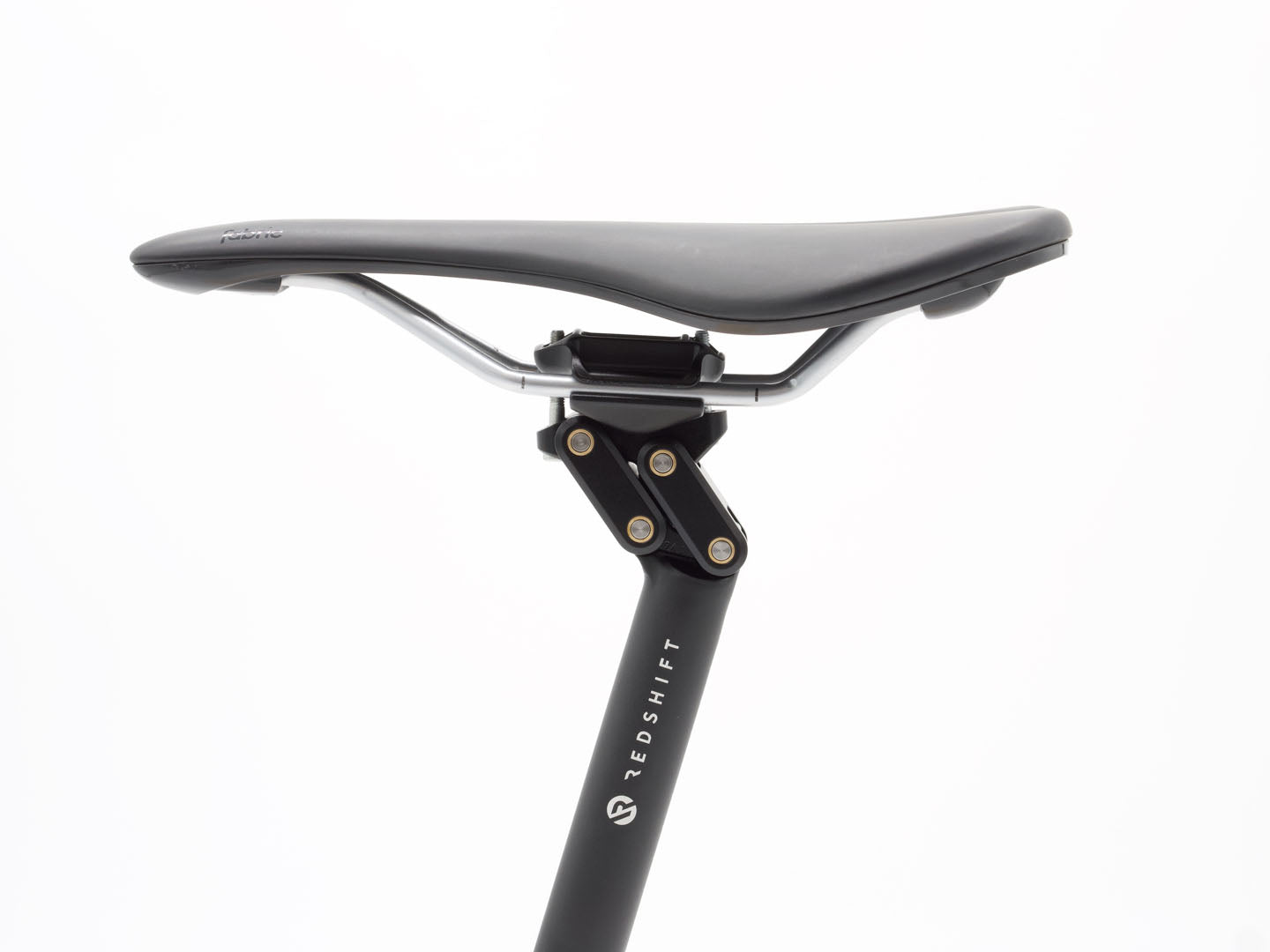

• Linkage design lets you switch between road and aero positions seamlessly while riding
• Choose the best position for every single climb, flat, or descent
• Maintain proper leg extension in both road and aero positions

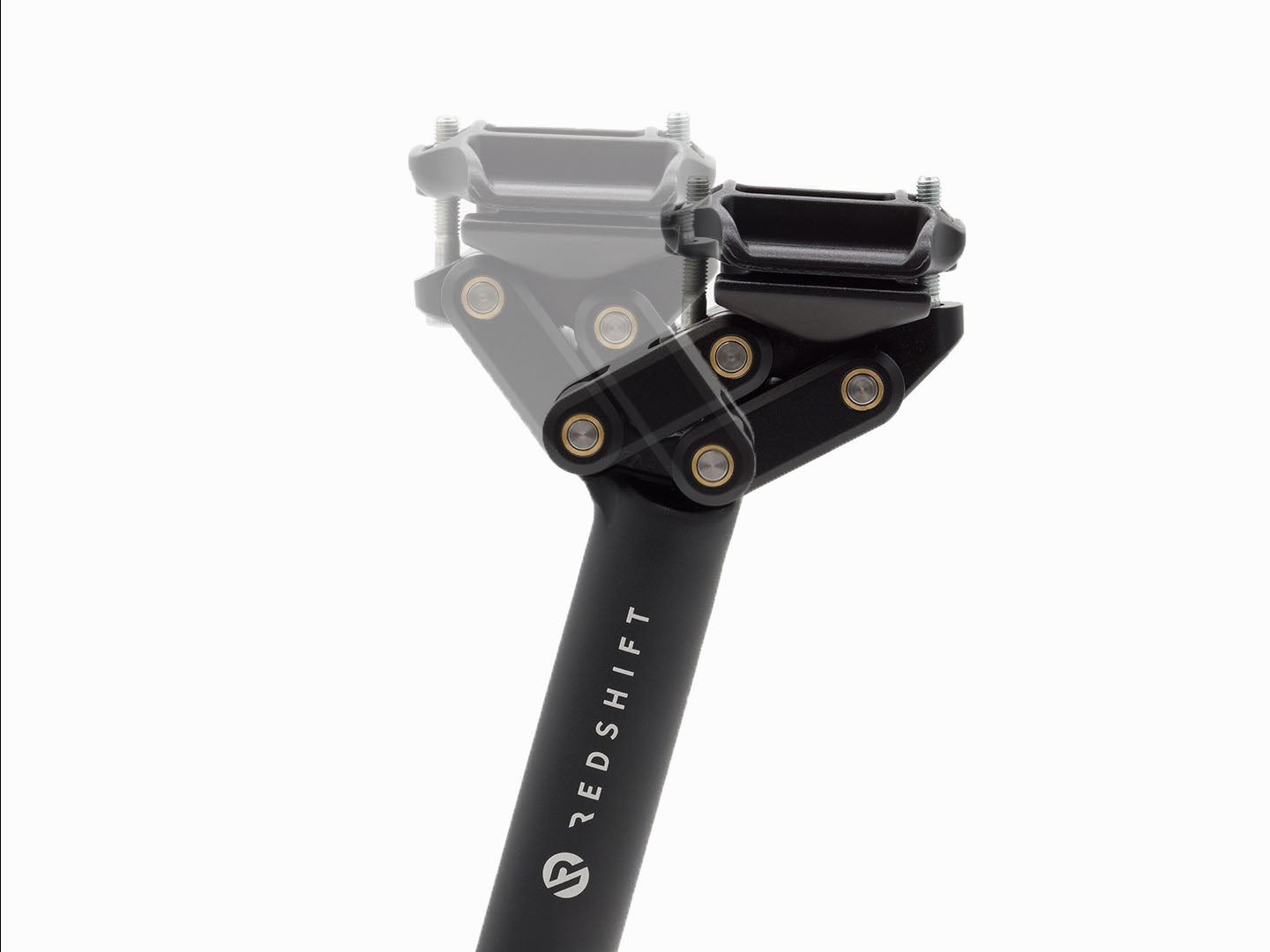

• Saddle moves forward 50mm, corresponding to approximately 4 degrees of effective seat tube angle change
• Aero road riding position optimized for proper handling on a road bike
• Simple, durable two-bolt saddle clamp allows infinite saddle tilt adjustment and reliable clamping
• 16mm rearward setback (road position)
• Check technical specifications for compatibility
What's in the Box:
• 1 x Dual-Position Seatpost
• 1 x Quick-Release Aerobars (including Handlebar Clamps, Quick-Release Mechanisms, Aerobar Extensions, Armrest, Armrest Pads, and all required hardware
Technical Specifications
Quick-Release Aerobars:
| Weight | 630 g/pr Aluminum S-bend 640 g/pr Aluminum L-bend |

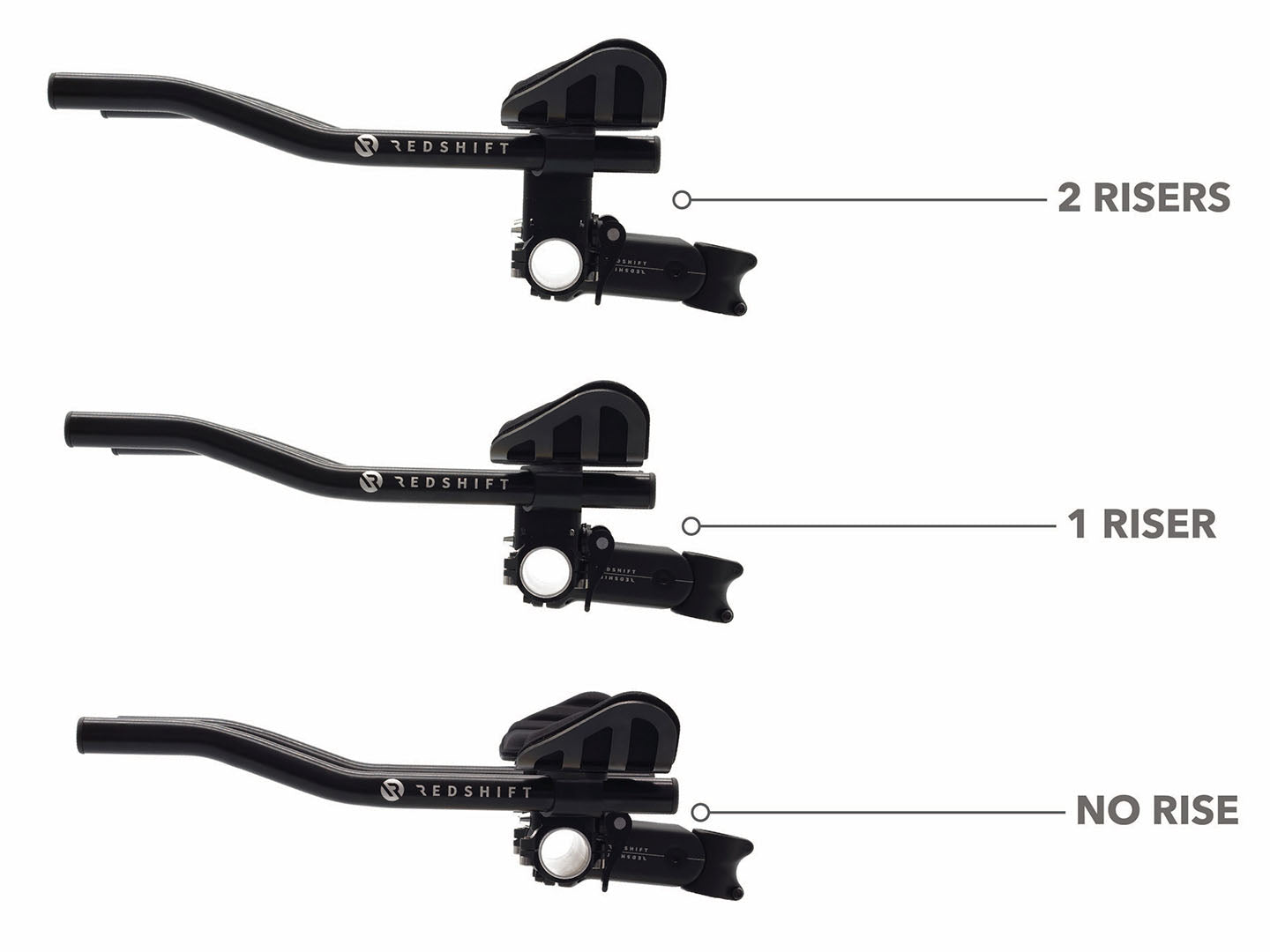

| Pad Height (A) | Minimum - 70 mm Maximum - 100 mm (with two stack spacers - sold separately as Extension Riser Kit) |
| Pad Setback (B) | Minimum - 30 mm Maximum - 81 mm |
| Pad Width (C) | Minimum - 108 mm Maximum - 165 mm |
| Extension Length (D) | 362 mm S-bend 368 mm L-bend |
| Extension Rise (E) | 50 mm S-bend 100 mm L-bend |
| Extension Diameter (F) | 22.2 mm (compatible with industry-standard extensions) |
| Handlebar Clamp Width (G) | 22 mm |
| Handlebar Diameter | 31.8 mm compatible 26.0 mm compatible (with shims - sold separately as Shim Kit) |
| Material | 6061-T6 aluminum |
| Intended Use | ASTM F2043 Class 1 - Suitable for road riding (only). |
Dual-Position Seatpost:
| Weight | 400 g |
| Seatpost Diameter (A) | 27.2 mm |
| Seatpost Length (B) | 350 mm (bottom to clamp centerline) |
| Minimum Insertion (C) | 75 mm |
| Rearward Offset Road Position (D) | 16 mm (post centerline to clamp centerline) |
| Forward Offset Aero Position (E) | 34 mm (post centerline to clamp centerline) |
| Total Travel Road to Aero Position | 50 mm (3-4 degrees effective seat tube angle change) |
| Saddle Rail Compatibility | Standard 7 mm round saddle rails only |
| Material | Linkages & saddle clamps - 7075 T6 aluminum Post - 6061 T6 aluminum |
| Rider Weight Limit | 115 kg (250 lb) |
| Intended Use | ASTM F2043 Class 1 - Suitable for road riding (only). |
Instructions
Download Instructions (PDF):
Instructions - Quick-Release Aerobars
Instructions - Dual-Position Seatpost
Installing Handlebar Clamps:

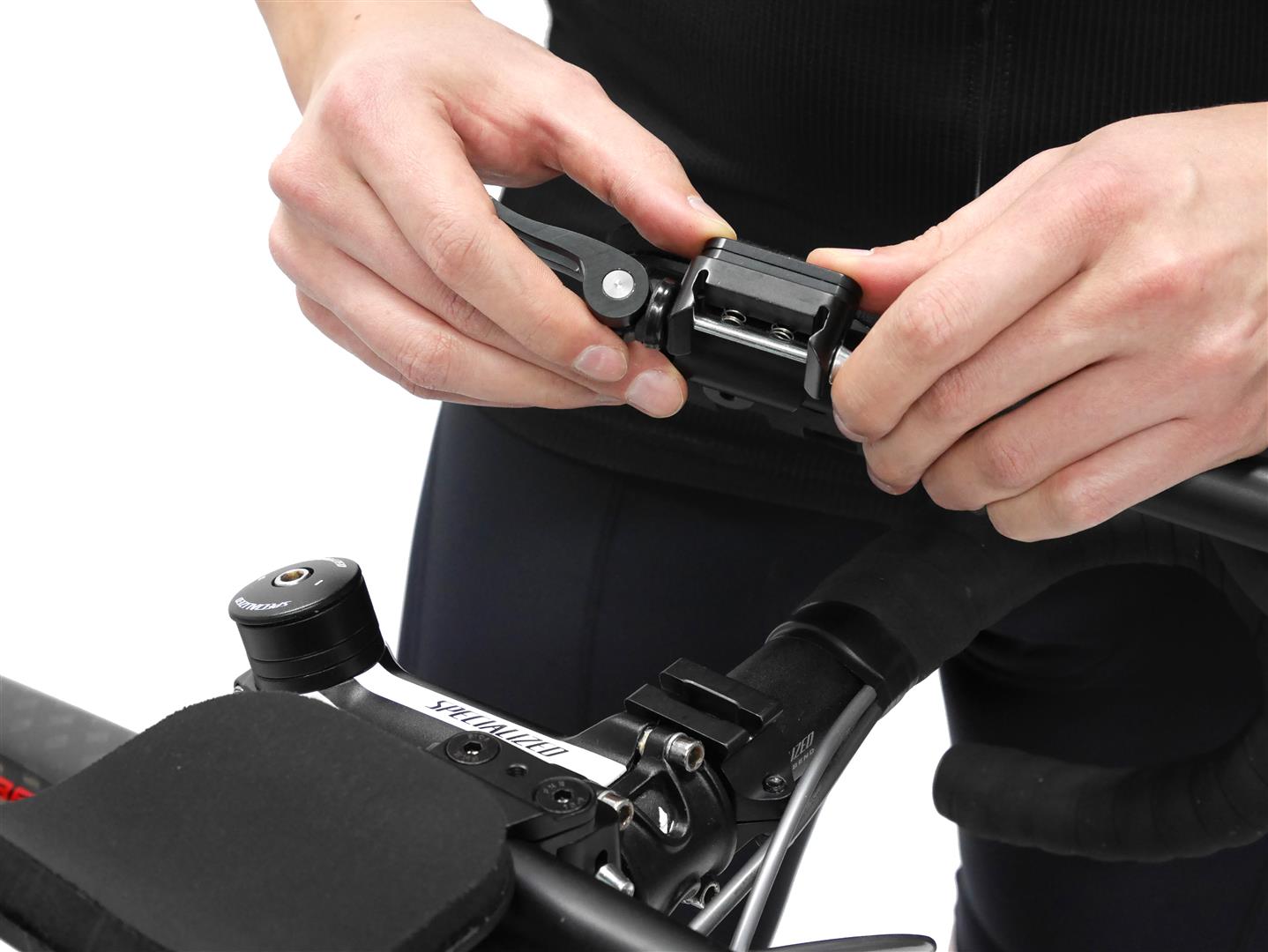

Attaching & Removing QR Aerobars:
Adjusting Armpad Position:
Shipping Info
90 day risk free trial & returns

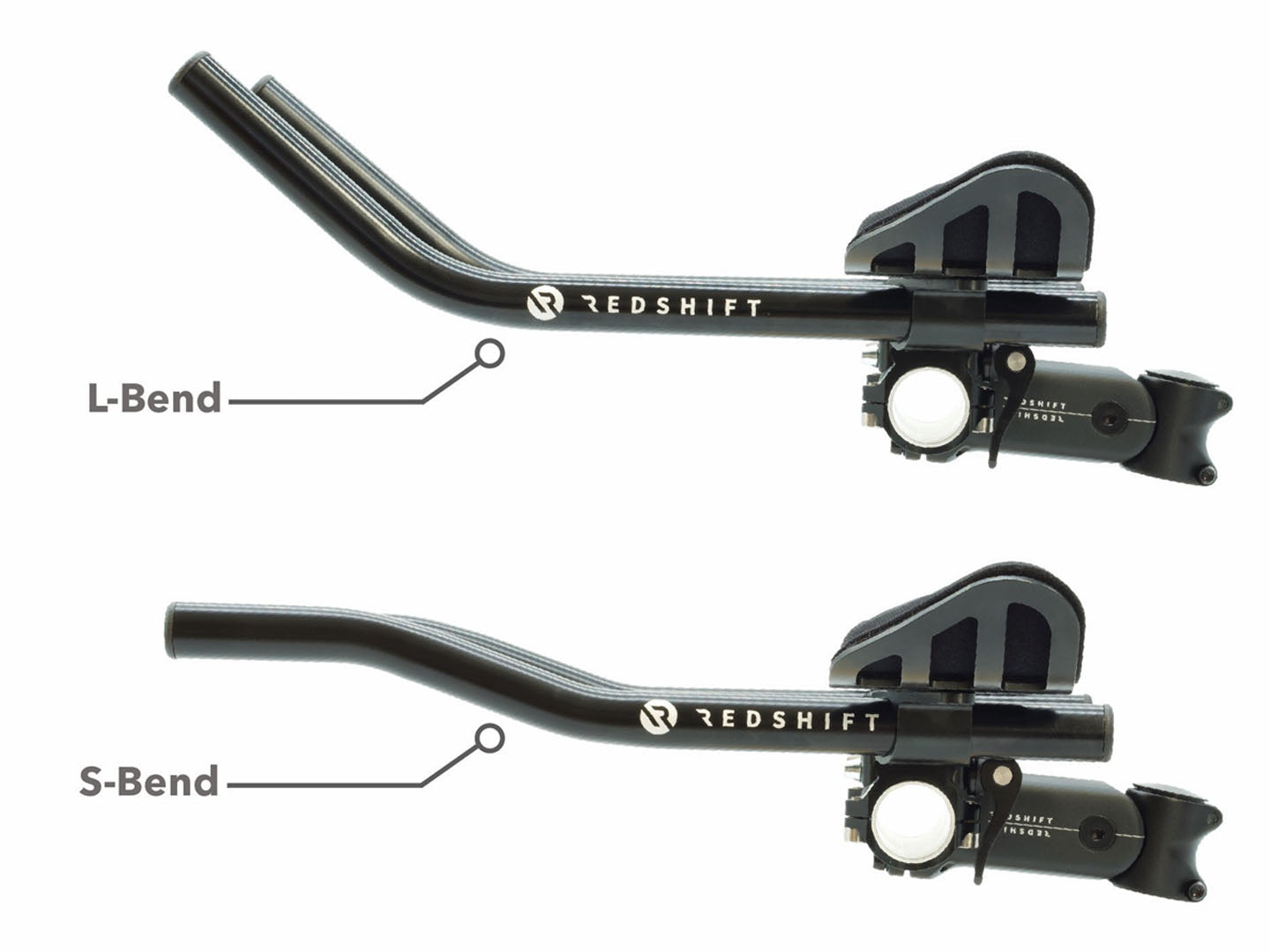

We offer two different shapes of aerobar extensions: L-Bends and S-Bends. The L-Bends (or ski-bends) tend to place your wrists in a more ergonomic, comfortable position that's great for long rides and triathlons. The S-Bends let you pull against the extensions effectively for intense time-trial efforts. Not sure which one is best for you? We generally recommend the L-Bend extensions if you're on the fence.
Different bikes sometimes have different seatpost diameters. The ShockStop Seatpost is 27.2mm in diameter, so if your bike's seatpost is larger, you'll need a shim to adapt our seatpost to your bike's frame. Don't worry though, the shims are super-lightweight and essentially invisible once installed.
Not sure what size seatpost you have currently? There are a couple different ways to find out.
• Most seatposts have the diameter printed somewhere near the bottom of the post. You'll need to remove the seatpost from the bike frame (mark your existing seatpost height with a bit of tape before you remove it so you can replace it easily), and look for a number like 27.2, 30.9, or 31.6 (etc.). That is the diameter of the post.• If you know the make, model, and year of your bike, you may be able to look up the seatpost diameter online. Feel free to shoot us an email at info@redshiftsports.com - we'll see if we can help out.
• Ask your local bike shop - they'll be able to accurately measure your bike's seatpost.
Non-compatible posts: Unfortunately, if your bike's seatpost is smaller than 27.2mm (for example, the 25.4mm posts found on some recent model Cannondale Synapses) our seatpost is currently not compatible with your bike. Likewise, if you have a bike with an aero/oval/non-round seatpost, or if your bike has an integrated seatmast, the seatpost is also not compatible.
