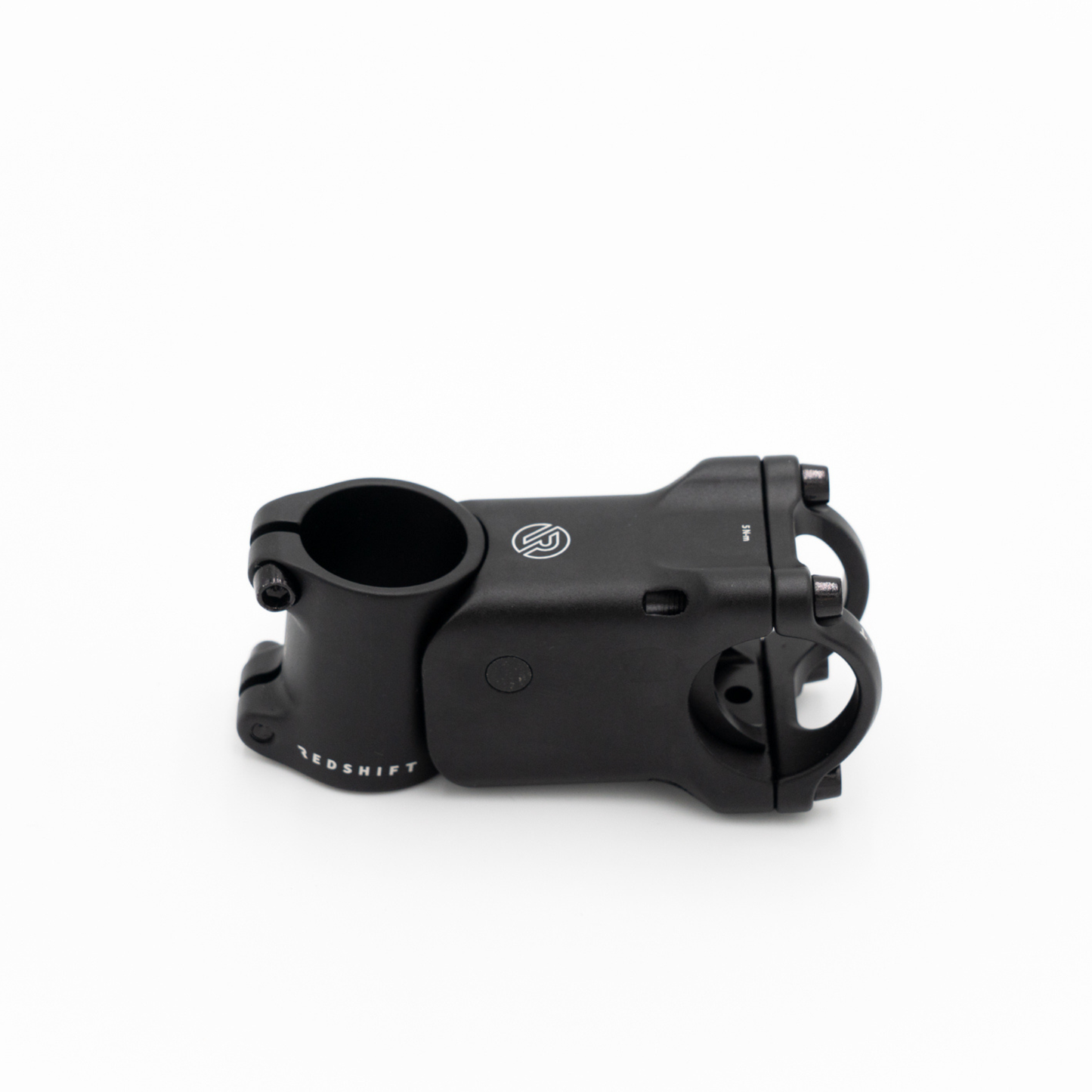

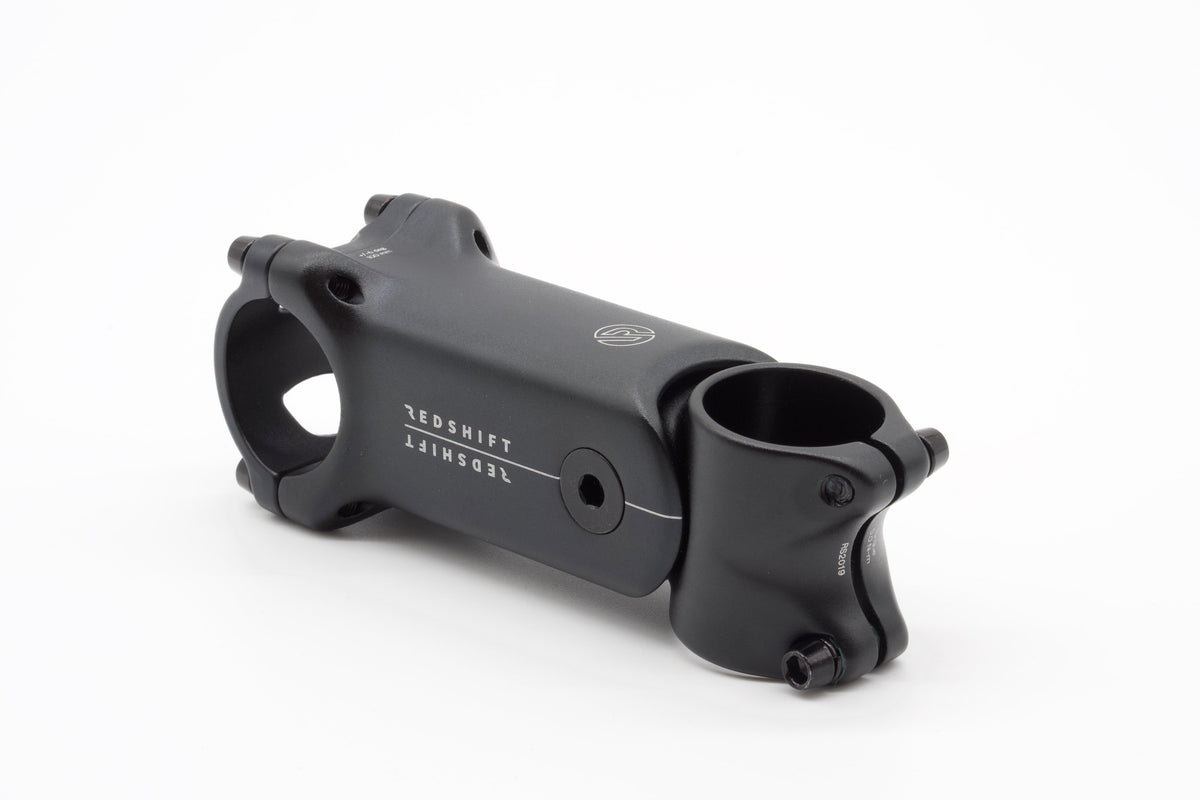

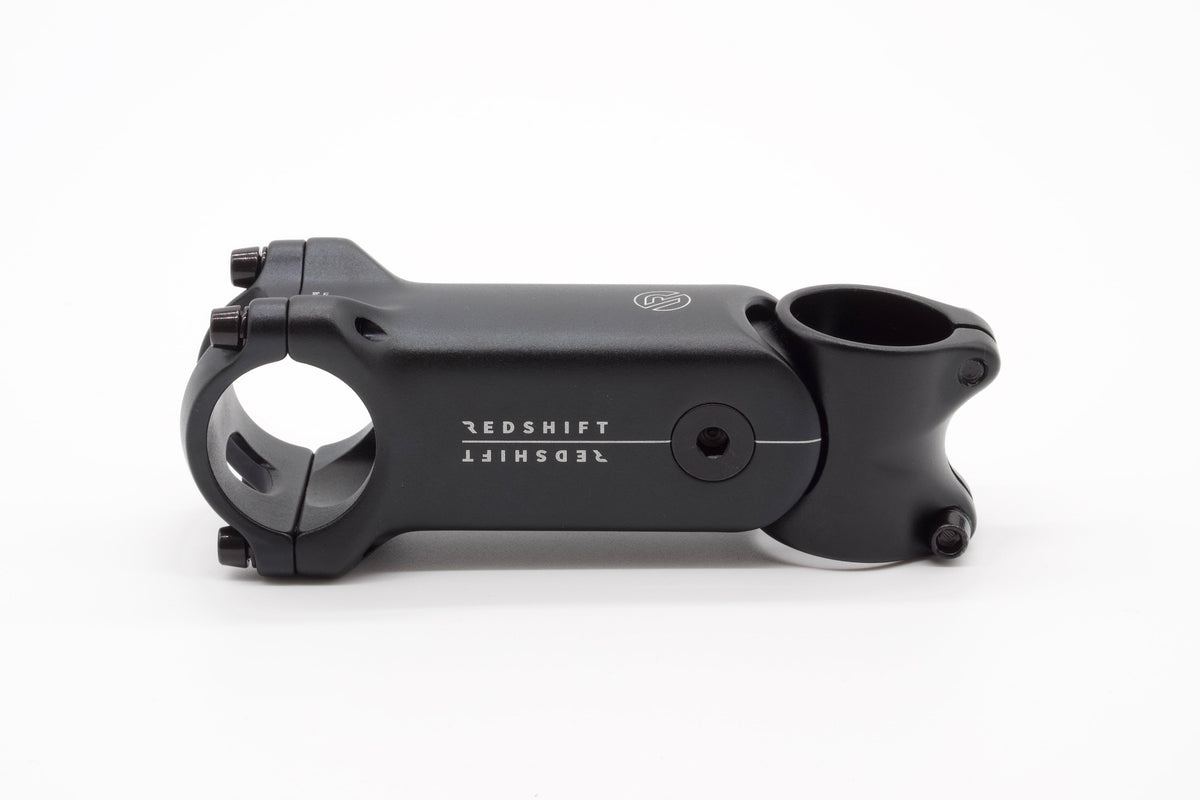

Oversized Non-Standard 1-1/4" ShockStop Suspension Stem
- Regular price
- $189.99
- Sale price
- $189.99
Oversized Non-Standard 1-1/4" ShockStop Suspension Stem
- Regular price
- $189.99
- Sale price
- $189.99

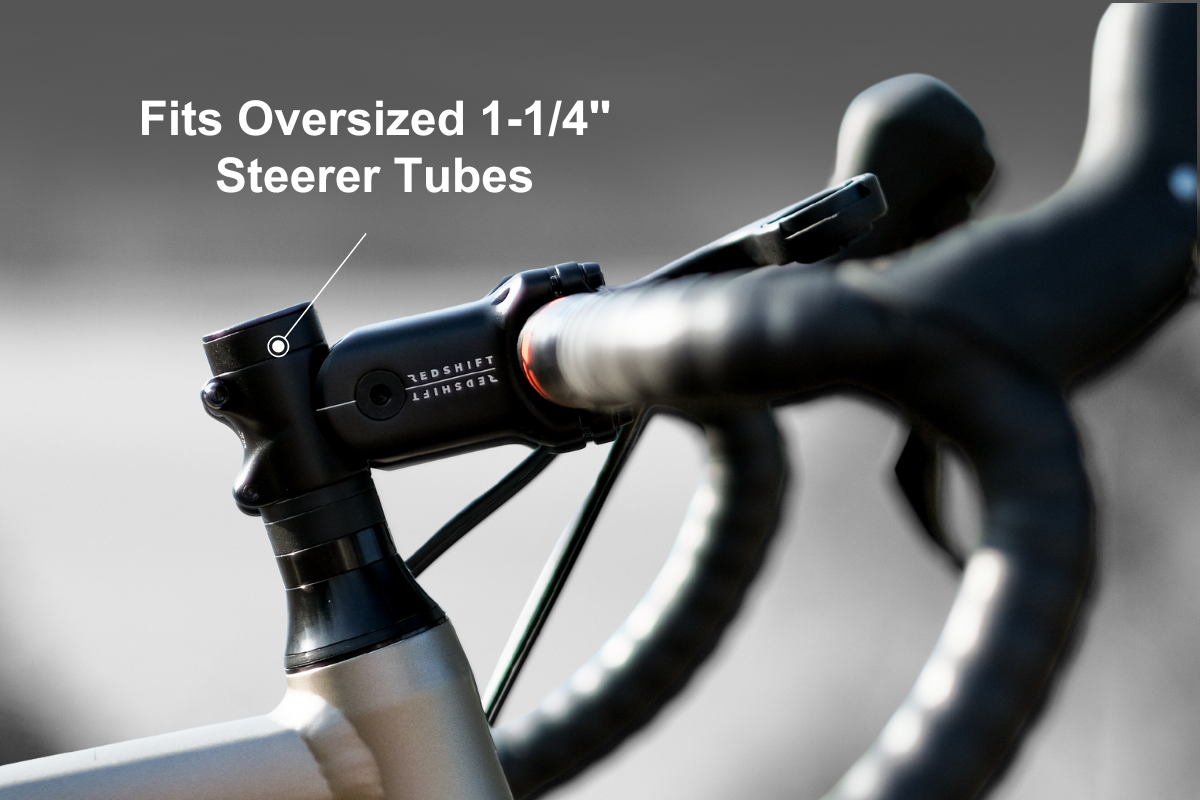

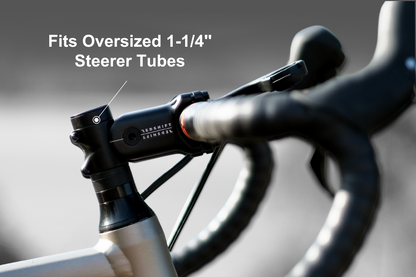

The Oversized 1-1/4" Steerer ShockStop Stem is only compatible with frames that have an oversized 1-1/4" diameter steerer tube (like Canyon, Giant, and Scott). If you're unsure if your bike has an oversized steerer tube, please email us at support@redshiftsports.com with the make, model, year and size of your bike and we're happy to help you

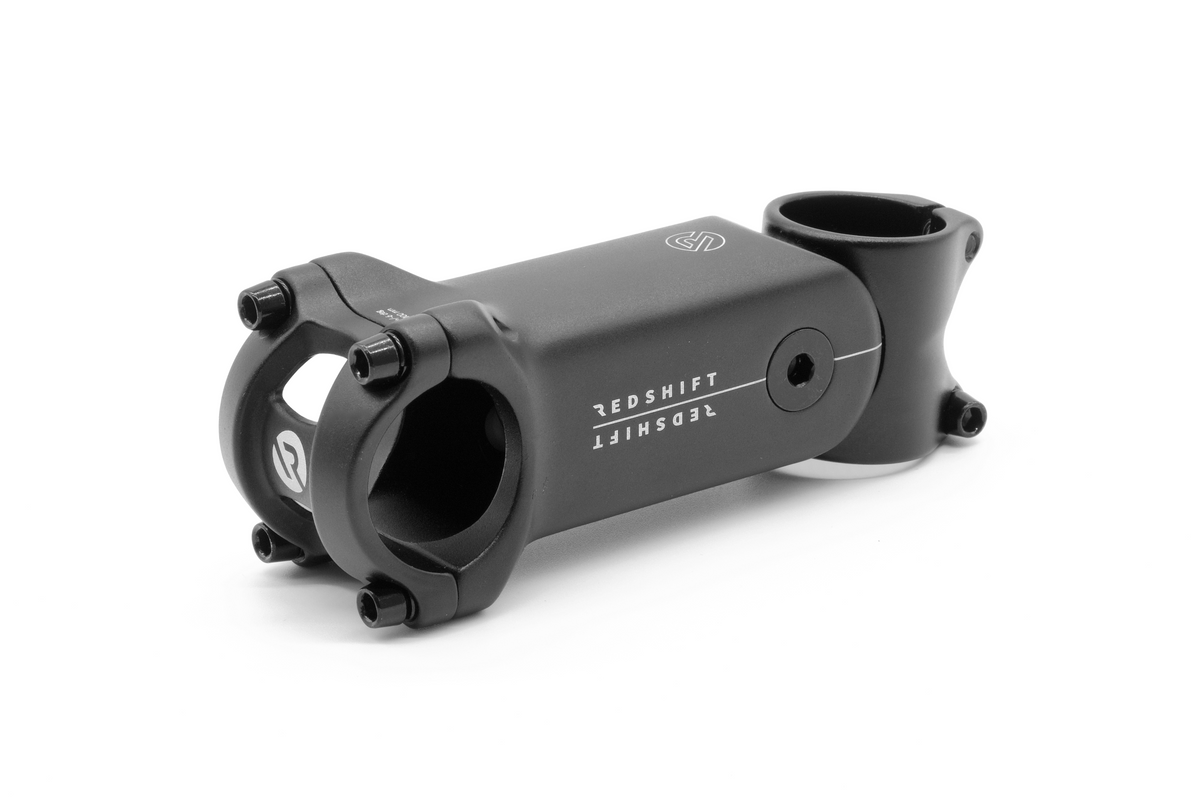

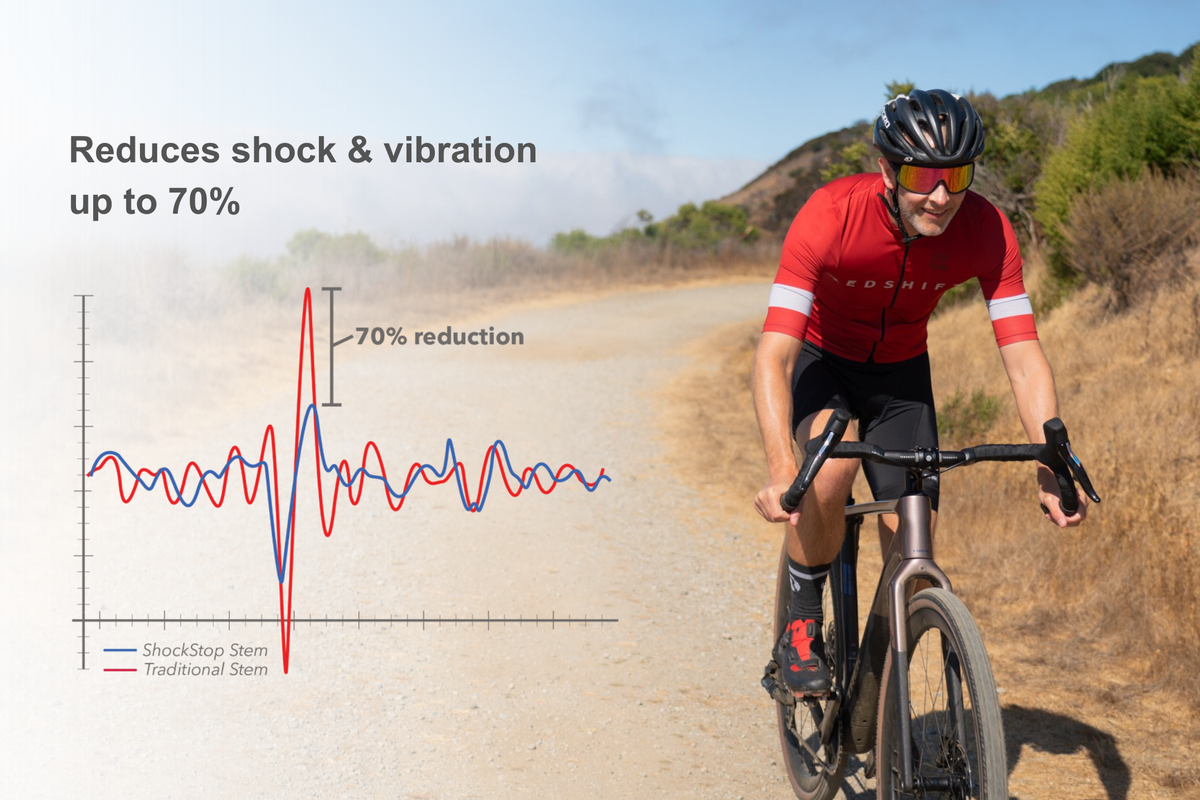

The patented ShockStop Suspension Stem smooths out road imperfections, reducing fatigue and strain. Whether you're on a local group ride, or exploring gravel back roads, the ShockStop Stem will make your ride smoother, faster, and more comfortable.
The Oversized Steerer ShockStop Stem is only applicable to frames with an oversized 1-1/4" diameter steerer tube (such as those made by Canyon, Giant, and Scott). If you're unsure if your bike has an oversized steerer tube, please email us at support@redshiftsports.com and we're happy to help.
If you're looking for standard 1-1/8" diameter steerer tube ShockStop Stems in 55-120mm lengths, you can find them here.

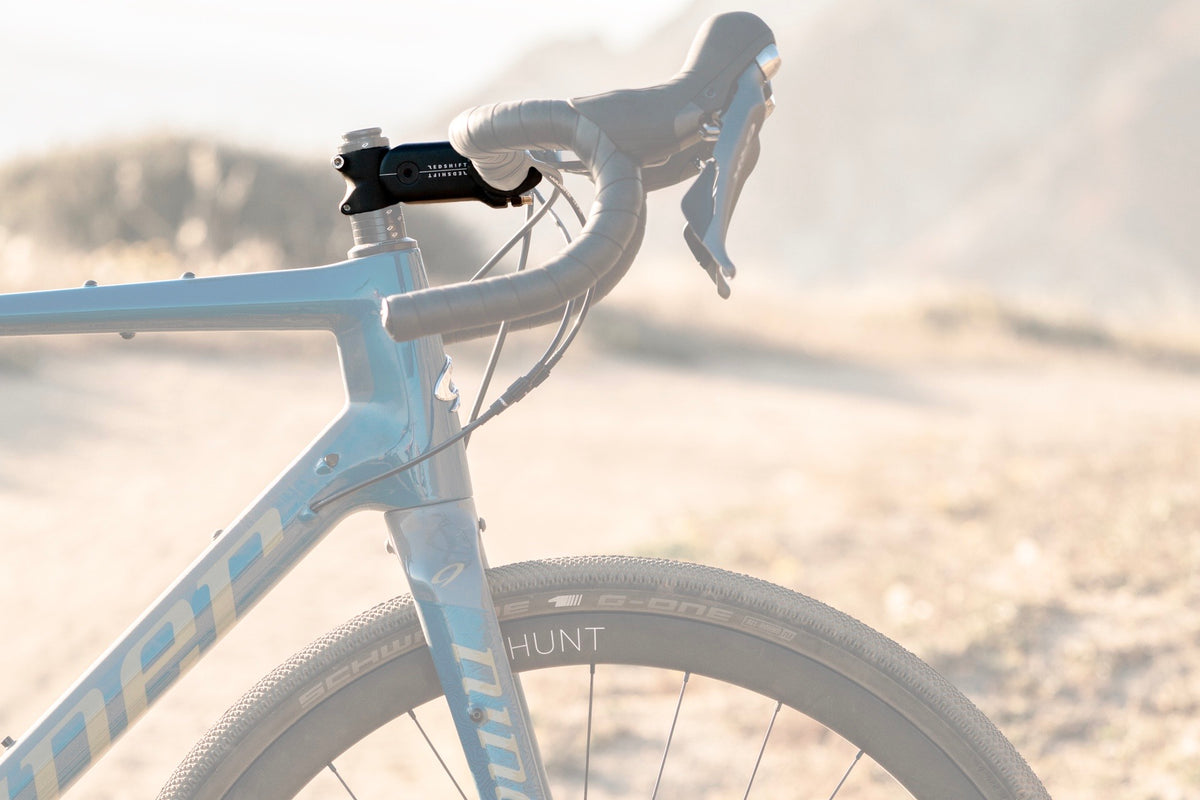

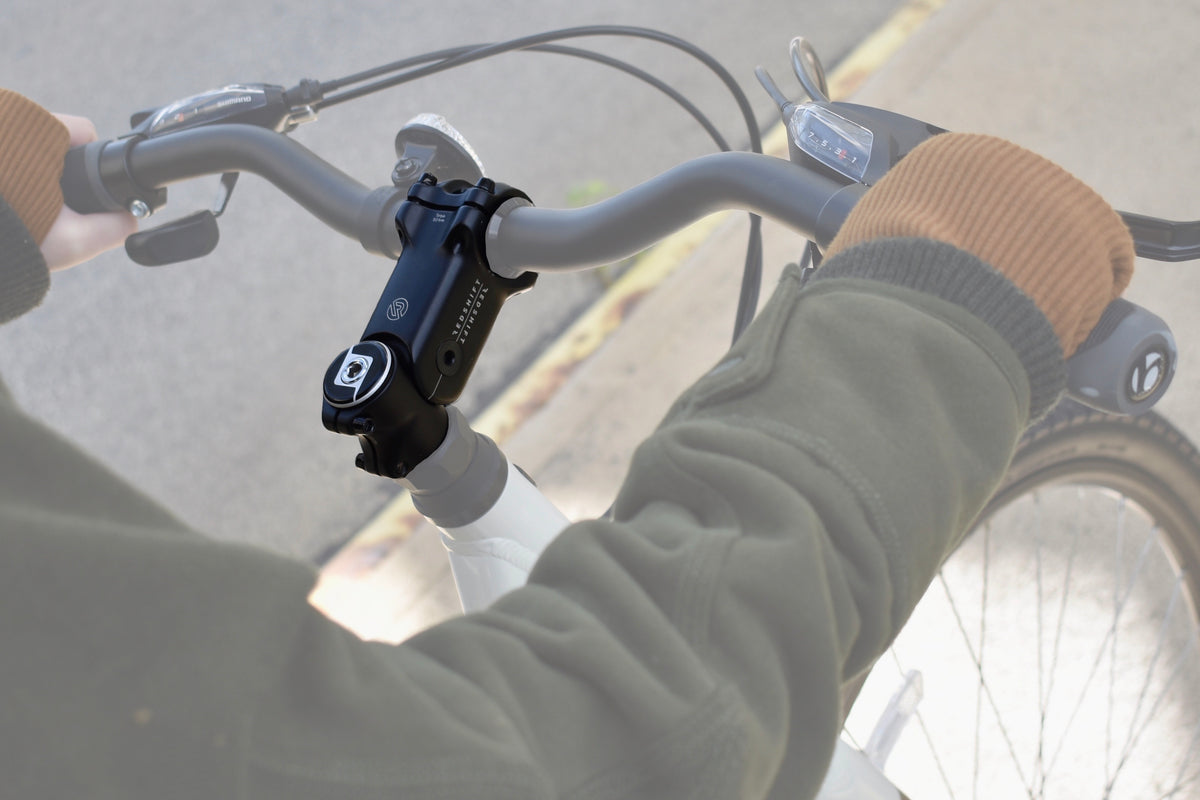

The minimal design of the ShockStop Stem blends seamlessly with the aesthetic of modern bikes, while reducing fatigue and strain. Along with the ShockStop Suspension Seatpost, this system works together to suspend the rider and smooth out rough terrain on the bike you already own, making your ride smoother, faster, and more comfortable. Great for bikepacking, gravel biking and commuter e-bikes.
Benefits of a Suspension Stem:
• Go farther - reduce fatigue from bumps and vibrations
• Ride faster - energy that is normally wasted suspending your body is converted into forward motion
• Take control - customize your suspension feel to float over obstacles and maintain control over rough terrain
Suspension Stem Features

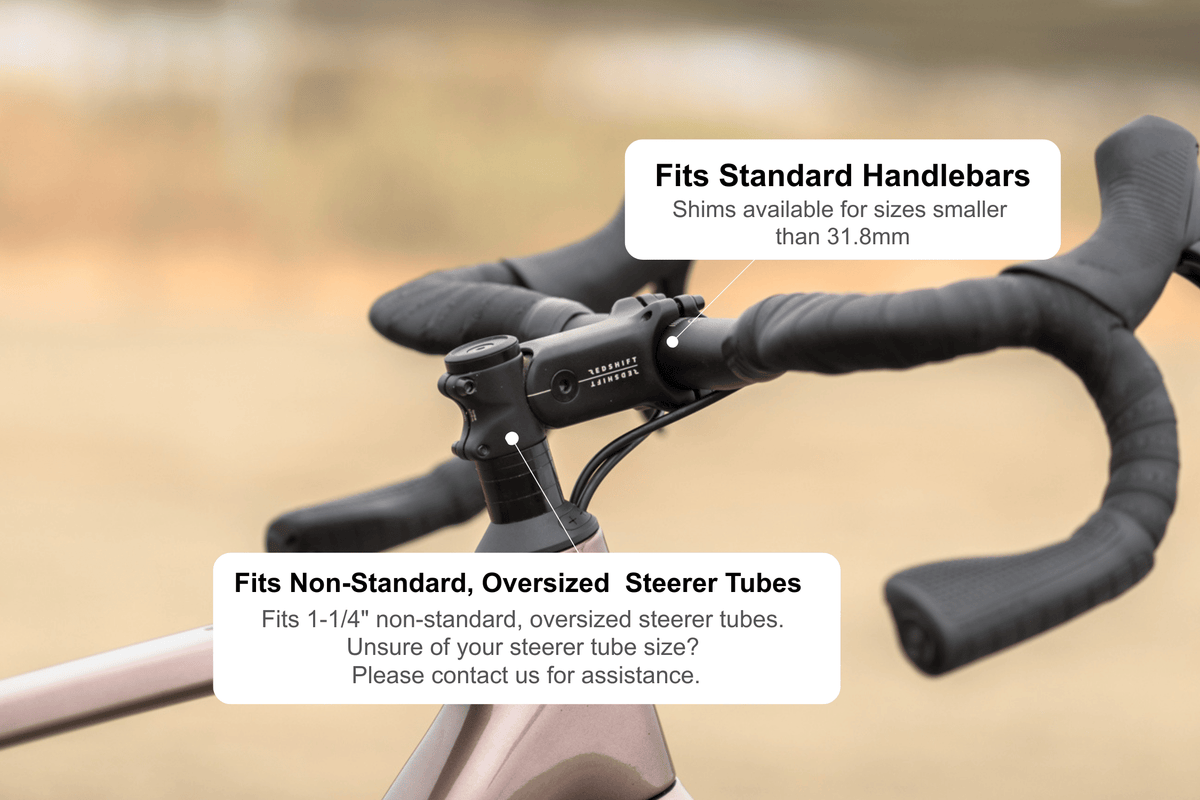

• The Oversized ShockStop Stem is applicable to frames with oversized 1-1/4" diameter steerer tubes (like Canyon, Giant, and Scott).

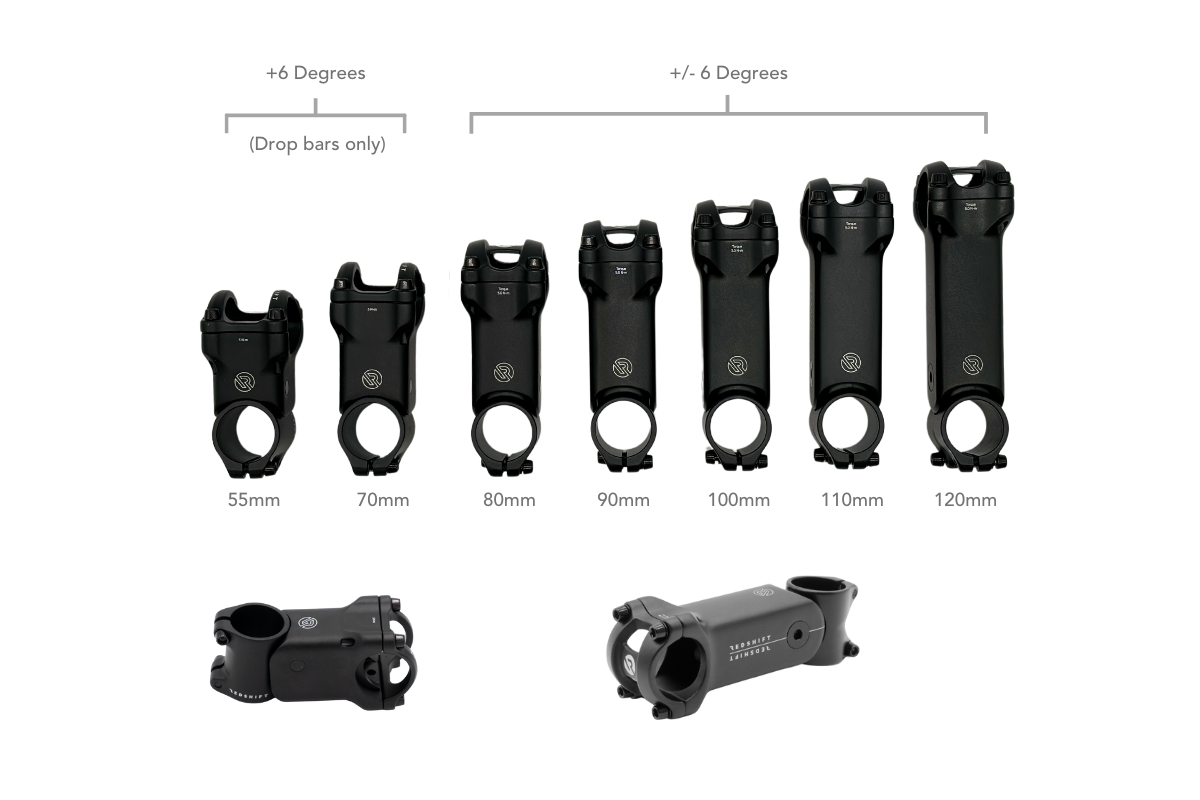

• It comes in +/-6 degree angles and 80, 90, 100, 110, and 120mm lengths (for shorter 55 & 70mm lengths you can signup to be notified when they are available here)

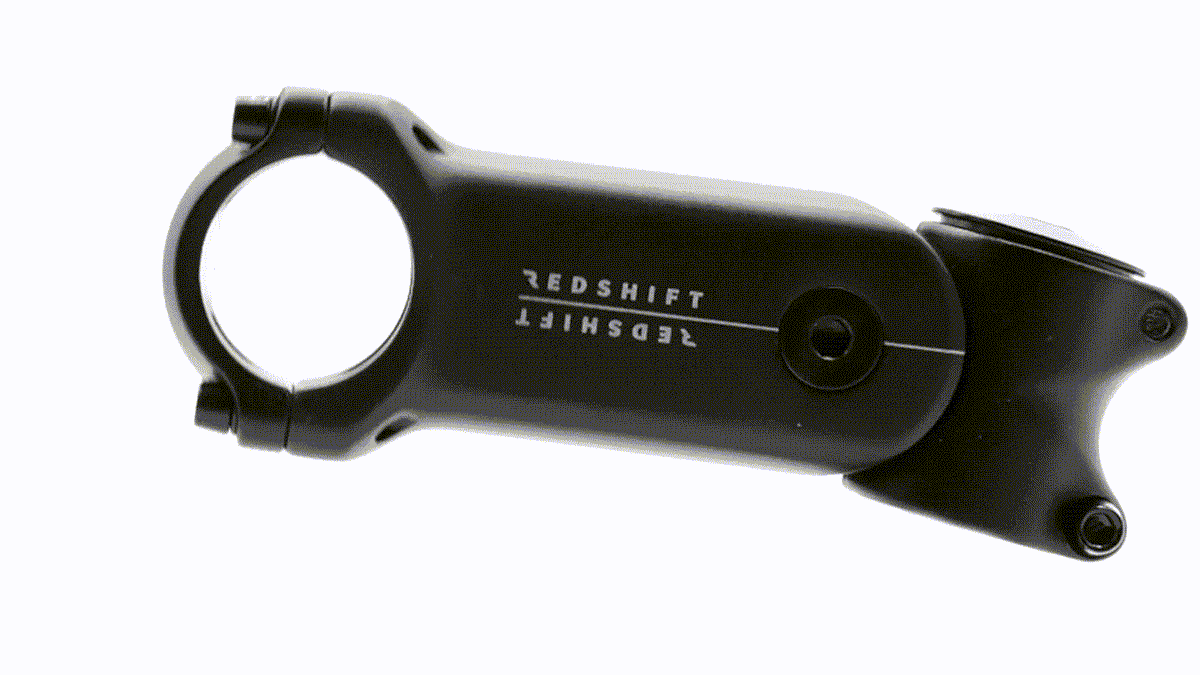

• Effective suspension travel:
- Up to 20mm

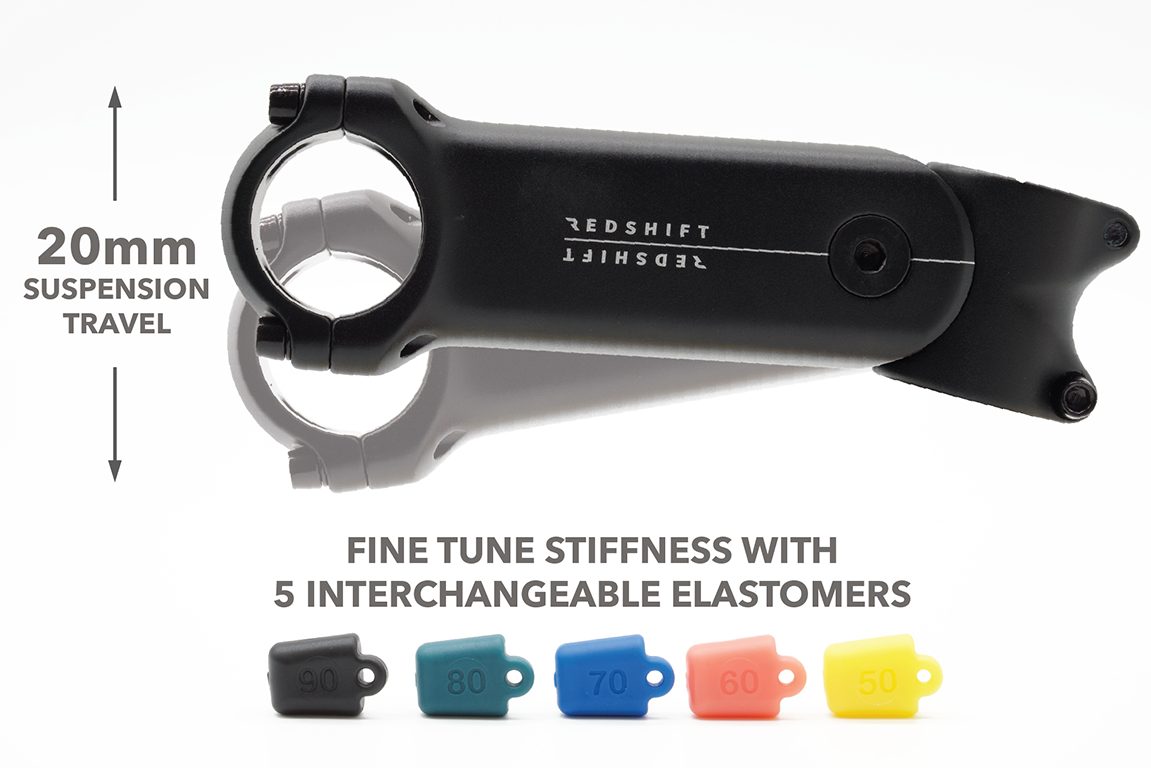

• Includes 5 swappable elastomers to fine tune your riding style
• Check technical specs for compatibility details
What's in the Box:
• 1 x ShockStop Stem
• 5 x swappable elastomers (2 pre-installed, 3 additional in box)
• All required hardware
| Weight | 256 g +/- 6 deg, 80mm 266 g +/-6 deg, 90mm 278 g +/-6 deg, 100mm 290 g +/-6 deg, 110mm 302 g +/-6 deg, 120mm For oversized steerer, add 2-5 g |
| Steerer Clamp Diameter (A) | Oversized 1-1/4 inch (31.8mm) |
| Handlebar Clamp Diameter (B) | 31.8 mm |
| Stem Length | Oversized 1-1/4 inch stems are available in 80, 90, 100, 110, and 120mm. To be notified when shorter (55 & 70mm) lengths are available signup here. |
| Effective Travel | Up to 20mm |
| Material | 6061 T6 aluminum |
| Rider Weight Limit | 135 kg (300 lb) |
| Steerer Tube Clamp Stack Height | 40mm |
| Compatibility | Drop Bars and Flat Bars note: flat bars with large back sweep might reduce effectiveness; see our FAQ or contact us. |
| Intended Use | ASTM F2043 Class 2 - For on and off-road riding and drops less than 15cm (6"). |
How do I choose the right length and angle for my bike?
We put together a set of instructions that can help you determine the length and angle of your existing stem and provide guidance on what to chose based on riding style - check it out here.
How is the ShockStop Stem different from other suspension stems?
There are a lot of ways the ShockStop is different - so many in fact, we wrote a whole blog post about it. Check it out here.
How do I measure my steerer tube diameter?
The easiest way to determine your steerer tube size is to use a pair of calipers to directly measure the diameter or take your bike to the local bike shop and they will be able to measure it for you. Alternatively, most of the time a manufacturer will list this under their specifications in the Frame/Fork section. Make sure you are looking at the correct model year as these sizes can change year to year.
The 1-1/8" ShockStop Stem is the standard size used by most modern bikes. The 1-1/4” version can now be used on popular brands such as Giant, Canyon, and Scott bikes, if you're unsure if your bike has an oversized steerer tube, please email us at support@redshiftsports.com and we're happy to help.
To read more Frequently Asked Questions about the ShockStop Stem, click here.
Download Instructions (PDF):
Instructions - ShockStop Suspension Stem - 90-120mm lengths
Instructions - ShockStop Suspension Stem - 90-120mm lengths (Torx Bolt Version - Torx Tool Included)
Instructions - ShockStop Suspension Stem - 80mm length
Installing the ShockStop Stem (see below for 80mm elastomer install details):
Elastomer Install and Removal for 80mm ShockStop Stem:
Elastomer Selection Chart for 80mm ShockStop Stems
(See instructions and video for elastomer installation details)
Elastomer Selection Chart for 90-120mm ShockStop Stems
(See instructions and video for elastomer installation details)
The charts linked above provide a good starting point when first setting up the stem. This chart shows the full list of elastomer combinations, in order of increasing stiffness.
